Texas Punch: Faceting Design Diagram
Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Texas Punch".
Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)
Texas Punch (MIR72.JRG)
By Jeff R. Graham
Copyright 2005
87.6% Light Return
Angles for R.I. = 1.54
21 facets + 5 facets on girdle = 26
5-fold, mirror-image symmetry
80 index
L/W = 1.051 T/W = 0.276 T/L = 0.262 P/W = 0.389
C/W = 0.282 H/W = (P+C)/W+0.02 = 0.691 P/H = 0.563 C/H = 0.408 Vol./W^3 = 0.209
PAVILION

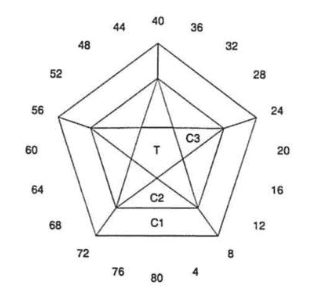

CROWN
Addition # 10 - Cut in refractive indexes 1.54 to 1.93 with no changes. This is designed for light saturations and is ideal in Rose de France. The star effect shows better in a large stone. I like it in 10mm to 16mm. It is easy to cut.
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
