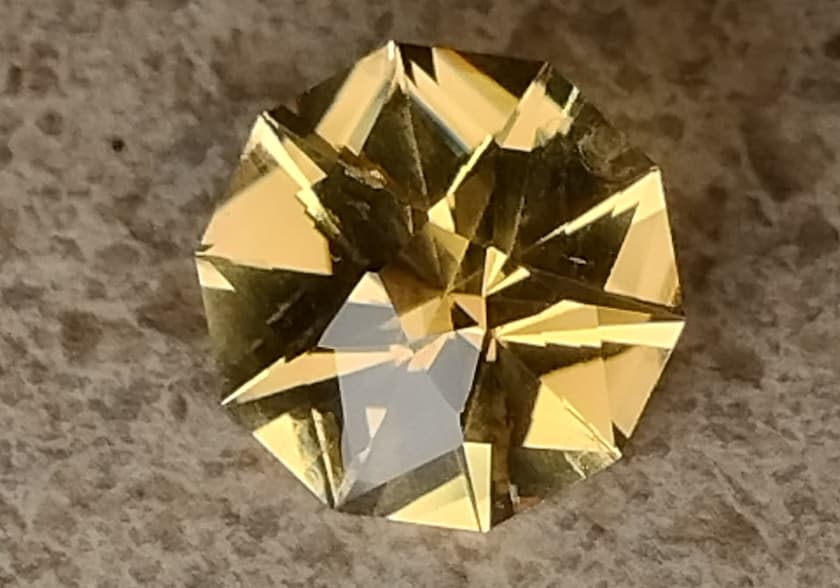

Passion (Mirage): Faceting Design Diagram
Successful tips, details and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Passion"
Quartz (Amethyst, Citrine, Ametrine, Smokey, Rose)
Passion (MIR29.JRG)
By Jeff R. Graham
Copyright 2004
91.9% Light Return
Angles for R.I. = 1.54
51 facets + 10 facets on girdle = 61
5-fold, mirror-image symmetry
80 index
L/W = 1.051 T/W = 0.244 T/L = 0.232
P/W = 0.435 C/W = 0.257
H/W = (P+C)/W+0.02 = 0.712
P/H = 0.611 C/H = 0.361
Vol./W^3 = 0.234
Addition # 9 - This is good in about any material and I designed it to be cut in a large stone. It works best in lightly saturated materials and has a very interesting look. Cut in refractive indexes 1.54 to 1.93 with no changes.
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
